Airmar B117 50/200kHz 600W Mix Match 0 Deadrise [B117-DT-MM]

Barcode: 801769000238
Availability: In Stock
$192.49
$192.49
Order within the next hours minutes to ship by end of next business day. Estimated delivery for Standard shipping is between and

Sold Through Authorized Distributors

Ensuring product authenticity and quality by sourcing from trusted, authorized distributors.

Return Policy

Learn More.

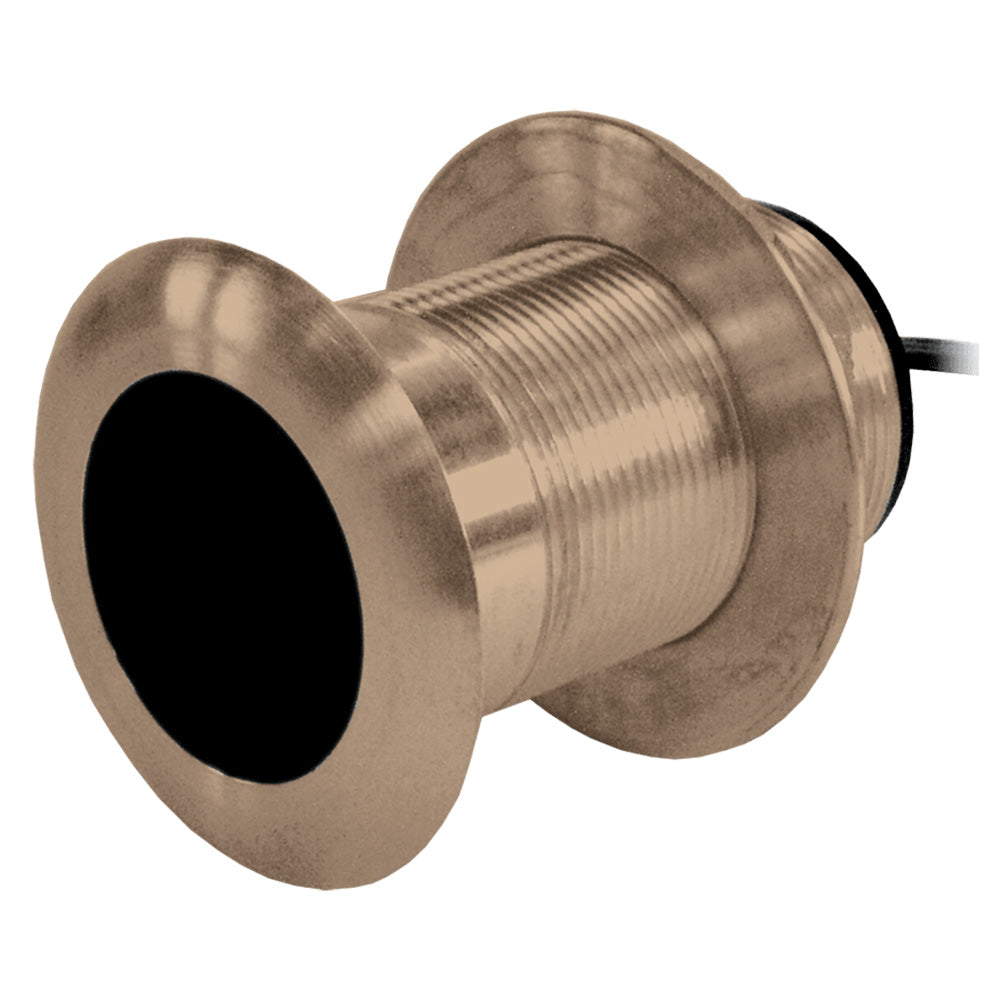

B117 50/200kHz 600W Mix & Match 0° Deadrise

Airmar’s entry-level B117 features a single, 50/200 kHz, dual-frequency, ceramic element in a low-profile bronze housing. The nearly-flush design minimizes drag with only 5 mm (3/16") extending outside the hull.

Features:

  • Depth only or depth and fast-response water-temperature sensing
  • 600 W of power
  • Dual-frequency element:
  • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
  • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Right-angle cable exit saves space and protects the transducer if stepped on
  • The included rubber washer allows tightening of the hull nut to irregular hull surfaces
  • Low-profile, bronze housing has minimal drag
  • Plastic (P319) and stainless steel (SS60) models are also available to accommodate all hull materials

Specifications:

  • Power Rating: 600 W
  • Max Deadrise Angle: 12°
  • Housing: Bronze
  • Functions: Depth, Temperature
  • Hull Material: Fiberglass or wood
  • Max Vessel LOA: Up to 8 m (26')
  • Hole Size: 51 mm (2")
  • Acoustic Window: Urethane
  • Common Use: Leisure/Yachting, Fishing
  • Conventional Beam: 45°/12°
  • Max Deadrise: Best performance through 7°. Accommodates up to 12°
  • Max Depth: Low frequency- 366 m (1200'), High frequency- 206 m (700')
  • Mounting Style: Low Profile Thru-Hull
  • Retractable housing: No
  • Single or Dual Frequency: Conventional Dual Frequency
  • Weight: 0.9 kg (2 lbs.)
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Chirp: No
  • Imagining: Standard
  • Mounting Style: Thru-Hull
  • Speed Included: No
  • Temperature: Yes
  • Box Dimensions: 3"H x 6"W x 8"L WT: 2.6 lbs
  • UPC: 801769000238
