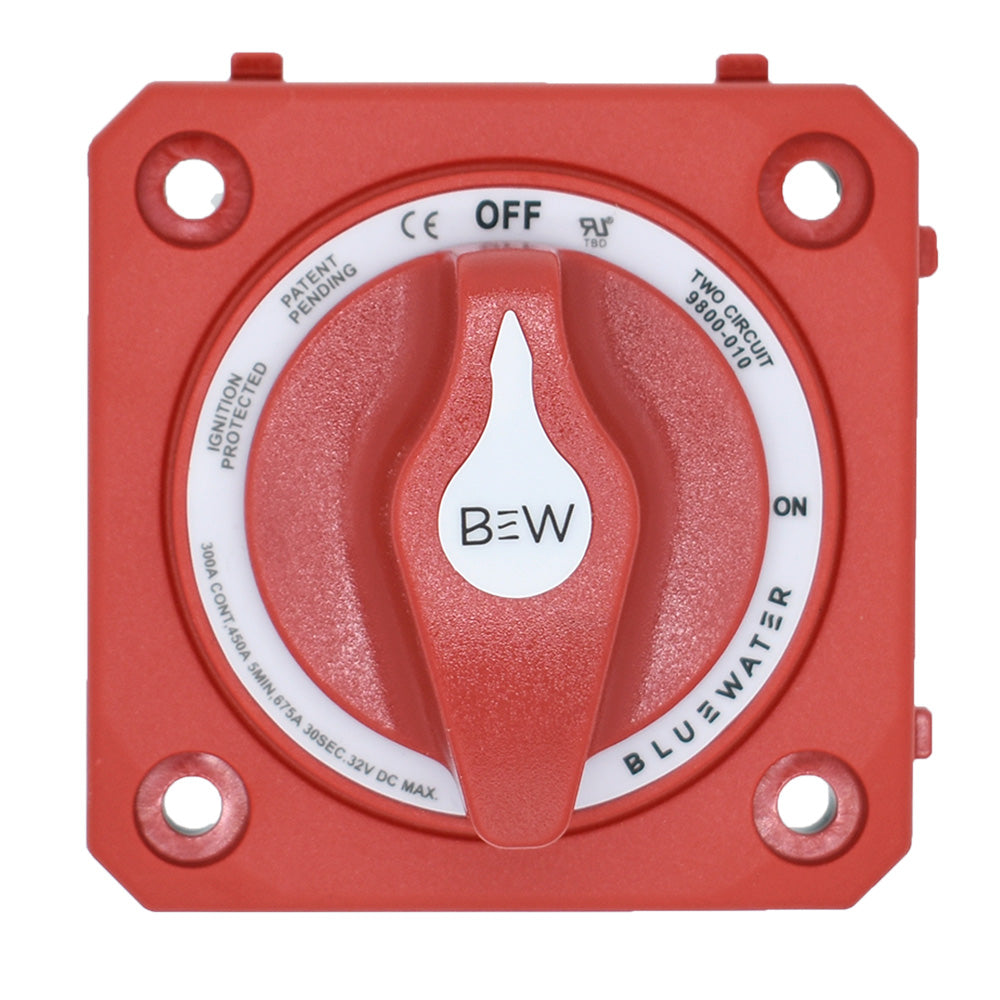

Bluewater On/Off 4 Post Dual Circuit Battery Switch w/o Base - Panel Mount - Red [9800-010-10]

Vendor: Bluewater
Barcode: 810196331204
Availability: In Stock
$41.25
$0.00
$41.25
Order within the next hours minutes to ship by end of next business day. Estimated delivery for Standard shipping is between and

Sold Through Authorized Distributors

Ensuring product authenticity and quality by sourcing from trusted, authorized distributors.

Return Policy

Learn More.

On/Off 4 Post Dual Circuit Battery Switch without Base - Panel Mount - Red

This dual circuit battery switch allows you to control two isolated circuits simultaneously with a single action. It’s ideal for applications that require independent power routing, such as separating a house battery and an engine battery, without risk of cross-connection.

Ignition-protected and safe for use aboard gasoline-powered boats, this dual circuit battery switch is also well-suited for marine and RV systems. The versatile case design supports surface, front panel, or rear panel mounting.

For maximum reliability, it features 3/8″-16 tin-plated copper studs that provide high conductivity and corrosion resistance, accepting both 3/8″ and M10 ring terminals. The 7/8″ stud length allows for secure connection of multiple cable terminals.

Durable by design, the switch is constructed from marine-grade, non-corrosive metals and housed in reinforced polycarbonate. Tactile knob textures enable position recognition by feel alone, and the unit includes both international ON/OFF legends and an ICON label set for clear circuit identification.

Specifications:

  • Continuous Rating: 300 Amps DC
  • Intermittent Rating: 450 Amps DC (5 min)
  • Cranking Rating: 675 Amps DC (30 sec)
  • Max Voltage: 32VDC
  • Cable Size: 4/0 AWG

Specifications:

  • Continuous Amperage: 300
  • Positions: 3
  • Box Dimensions: 3"H x 6"W x 9"L WT: 0.75 lbs
  • UPC: 810196331204
