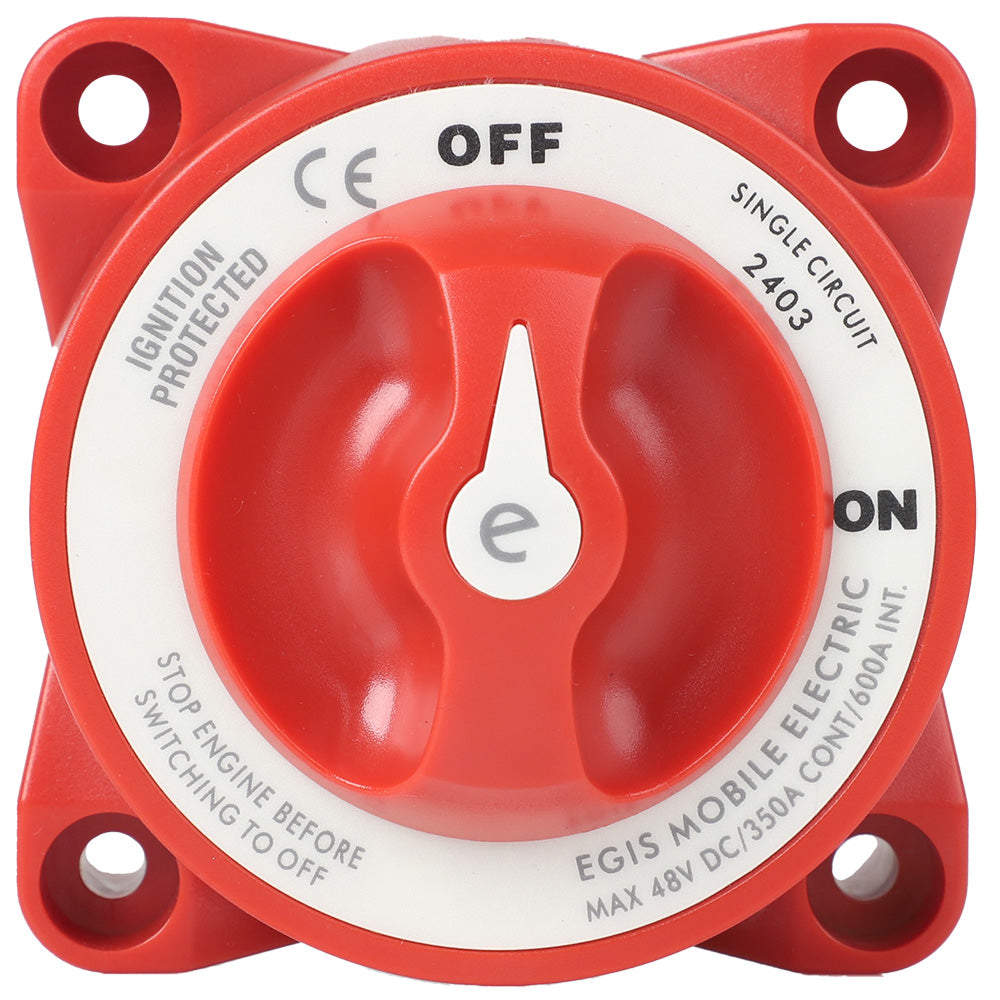

E-Series 350A Battery Switch Off/On

Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected - Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

  • Maximum Voltage (Single Circuit): 48 Vdc
  • Maximum Voltage (Selector / Dual Circuit): 32 Vdc
  • Stud Size And Thread: 3/8”-16
  • Terminal Stud Torque: 140 in-lbs (15.8 N-m)
  • Ring Terminal Size Acceptance: 3/8” (M10)
  • Mounting Holes: #1/4" (M6) Screw
  • Live Switching Rating: 25 Amps
  • Ignition Protection Rating: SAE J1171 / ISO 8846
  • Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter
  • Cable Size to Meet Rating: 4/0 AWG

Quick Guide (pdf)
