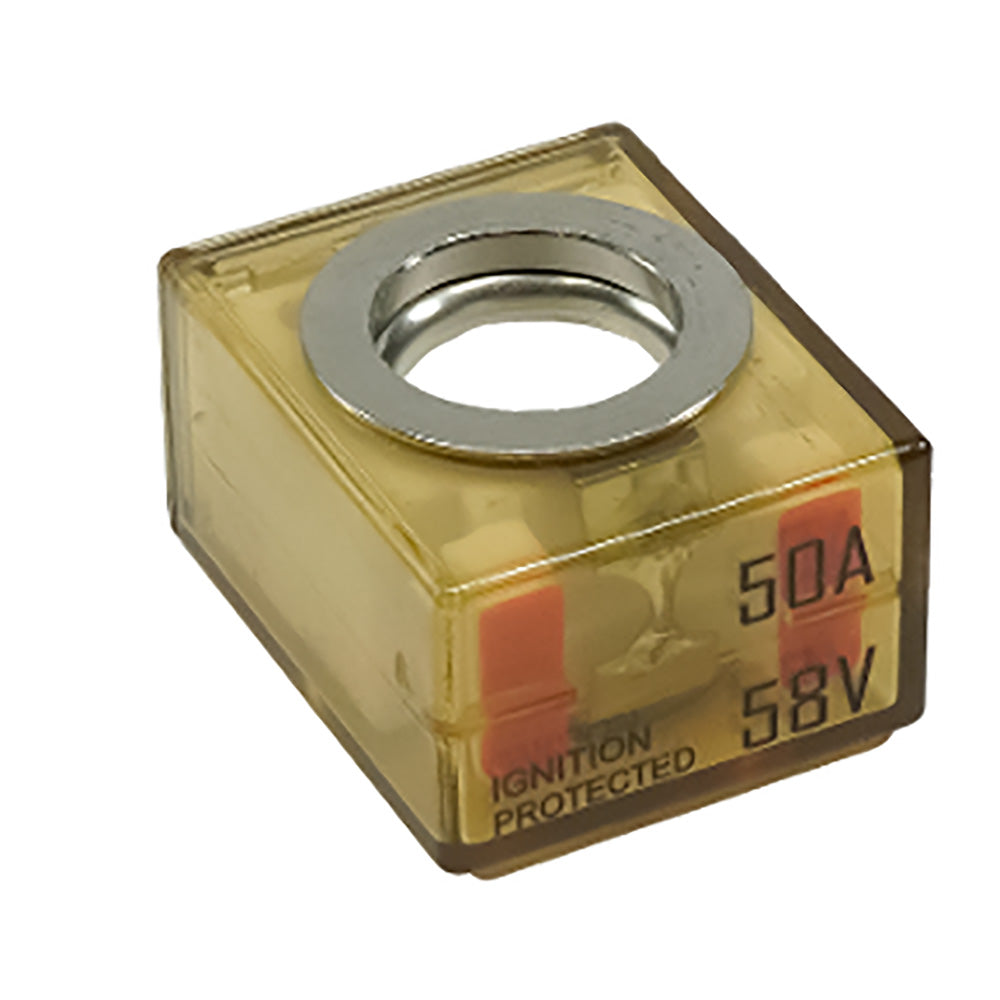

Egis MRBF Terminal Fuse - 50 Amp [3603-050]

Barcode: 850053879562
Availability: In Stock
$12.99
$13.30
$12.99
Order within the next hours minutes to ship by end of next business day. Estimated delivery for Standard shipping is between and

Sold Through Authorized Distributors

Ensuring product authenticity and quality by sourcing from trusted, authorized distributors.

Return Policy

Learn More.

MRBF Terminal Fuse - 50 Amp

  • Transparent easy visual of fuse status
  • Ignition-protected SAE/J1171-ISO8846
  • High interrupt rating satisfies ABYC requirements for DC main circuit protection on larger battery banks
  • Color-coded for easy ID of amperage rating

Features:

  • Protects Electrical Circuits from short circuit events and over-current loads, preventing wire insulation overheating and subsequent destruction.
  • High Interrupt Current safely protects circuits connected to large paralleled battery banks with significant available power
  • Ignition Protected safe for installation in closed compartments with potentially explosive gases Harsh Environment design with shock and vibration resistance ideal for marine and vehicle electrical systems.
  • Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation
  • 58 Vdc Rating: easily supports 12 to 48V nominal applications.
  • High Interrupt Current: safely protects circuits connected to large paralleled battery banks with significant available power
  • 4-Year Warranty: We stand behind our product's ability to meet your needs.

Specifications:

  • Continuous Current (Amps): 50
  • Max Voltage (VDC): 58
  • Interrupt Rating @ 14 VDC (Amps): 10,000
  • Interrupt Rating @ 48Vdc (Amps): 5,000
  • Interrupt Rating @ 58Vdc (Amps): 2,000
  • Ingress Protection: IP66

Specifications:

  • Amperage: 50
  • Fuse Type: Terminal
  • Type: Fuses
  • Box Dimensions: 1"H x 2"W x 6"L WT: 0.05 lbs
  • UPC: 850053879562
