Ronstan Series 25 Ball Bearing HHL Lashing Orbit Block [RF28109HL]

Ronstan Series 25 Ball Bearing HHL Lashing Orbit Block [RF28109HL]

Vendor: Ronstan
Barcode: 9316800661930
Availability: In Stock
$89.16
$104.90
$89.16
Order within the next hours minutes to ship by end of next business day. Estimated delivery for Standard shipping is between and

Sold Through Authorized Distributors

Ensuring product authenticity and quality by sourcing from trusted, authorized distributors.

Return Policy

Learn More.
Description

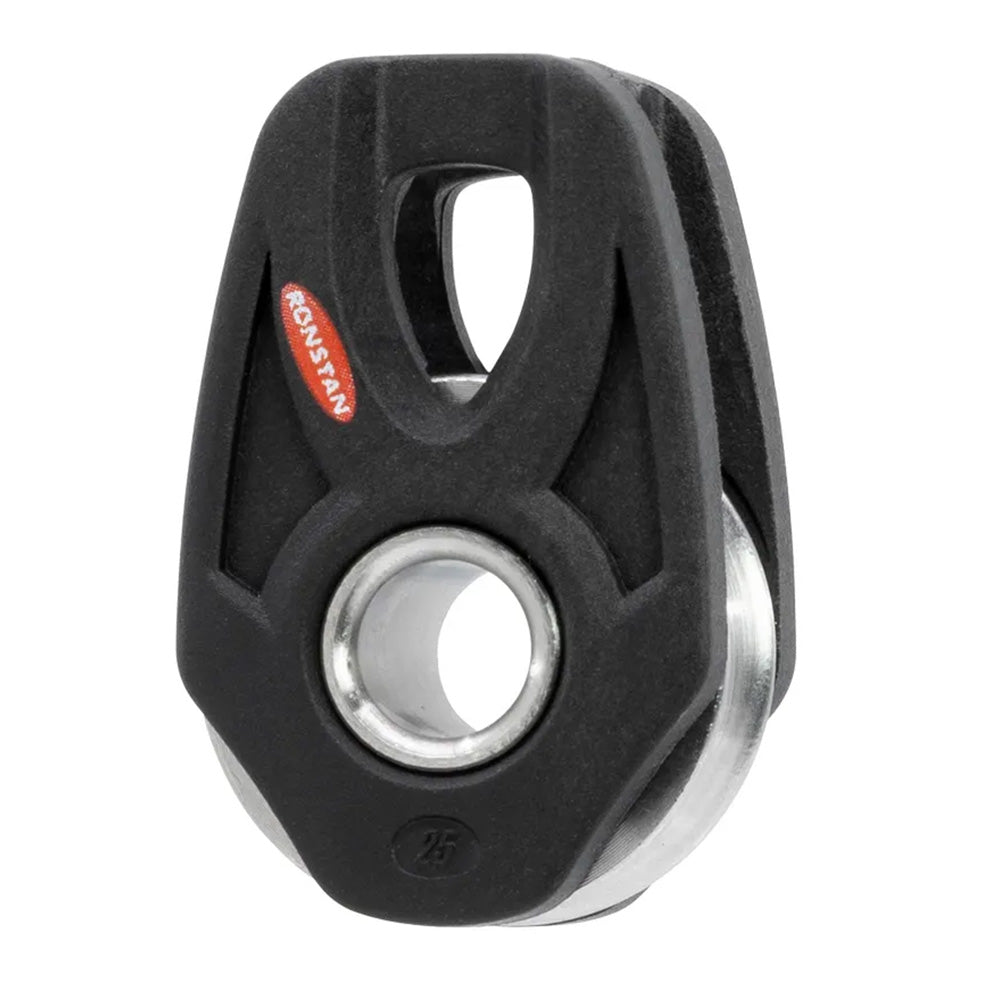

Series 25 Ball Bearing HHL Lashing Orbit Block™

Single sheave ball bearing high load block with becket hub option and lashing head.

The Series 25 Ball Bearing Orbit Blocks™ deliver superior strength, reduced weight, and exceptional performance for high-demand dinghy and small boat applications.

Designed with competitive sailors and performance boats in mind, these compact 25mm blocks are engineered to achieve the highest possible strength-to-weight ratio. Featuring Ronstan’s renowned high-compression strength acetal bearing system, the Series 25 BB Orbit Blocks are a lightweight yet durable solution, ideal for control line systems such as mainsheet and spinnaker sheet turning blocks, cunninghams, and cascading vangs on dinghies up to 4 metres.

Each block has a stainless steel hub for versatile lashing attachments and through-sheave becket functionality, making them adaptable to a wide range of rigging setups. The hub accommodates up to 4mm (5/32") lashing and ensures maximum efficiency without compromising reliability.

The range also includes a High Load (HHL) variant – the RF28109HL – which is equipped with a Grade 2205 stainless steel sheave and bearing race, paired with Grade 304 stainless steel ball bearings. These HHL blocks are purpose-built for high-load applications and are increasingly in demand for modern performance and foiling boats using small-diameter lines to carry significant loads.

Features:

  • 2-stage ball bearing system.
  • Suits up to 8mm (5/16”) lines.
  • Hollow hub for becket take-off.
  • Lashing blocks suit up to 4mm (5/32”) lashing.

Specifications:

  • Max. Rope diameter (in): 5/16
  • M.W.L. (lb): 880
  • Sheave diameter (in): 1
  • B.L. (lb): 2650
  • Weight (oz): 1.2

Applications:

  • Mainsheet and spinnaker sheet turning blocks on dinghies to 4m (13ft).
  • Control lines.
  • Cascading vangs.
  • Leech lines & cunninghams.

Materials:

  • Frame/cheeks: Toughened, glass fibre reinforced nylon.
  • HHL Sheave and bearing race: Grade 2205 stainless steel with Grade 304 stainless steel ball bearings.
