Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave [704-11]

Schaefer Series 7 Flat Base/Aluminum Cheek/Delrin Sheave [704-11]

Vendor: Schaefer Marine
Barcode: 740507010705
Availability: In Stock
$126.99
$126.99
Order within the next hours minutes to ship by end of next business day. Estimated delivery for Standard shipping is between and

Sold Through Authorized Distributors

Ensuring product authenticity and quality by sourcing from trusted, authorized distributors.

Return Policy

Learn More.

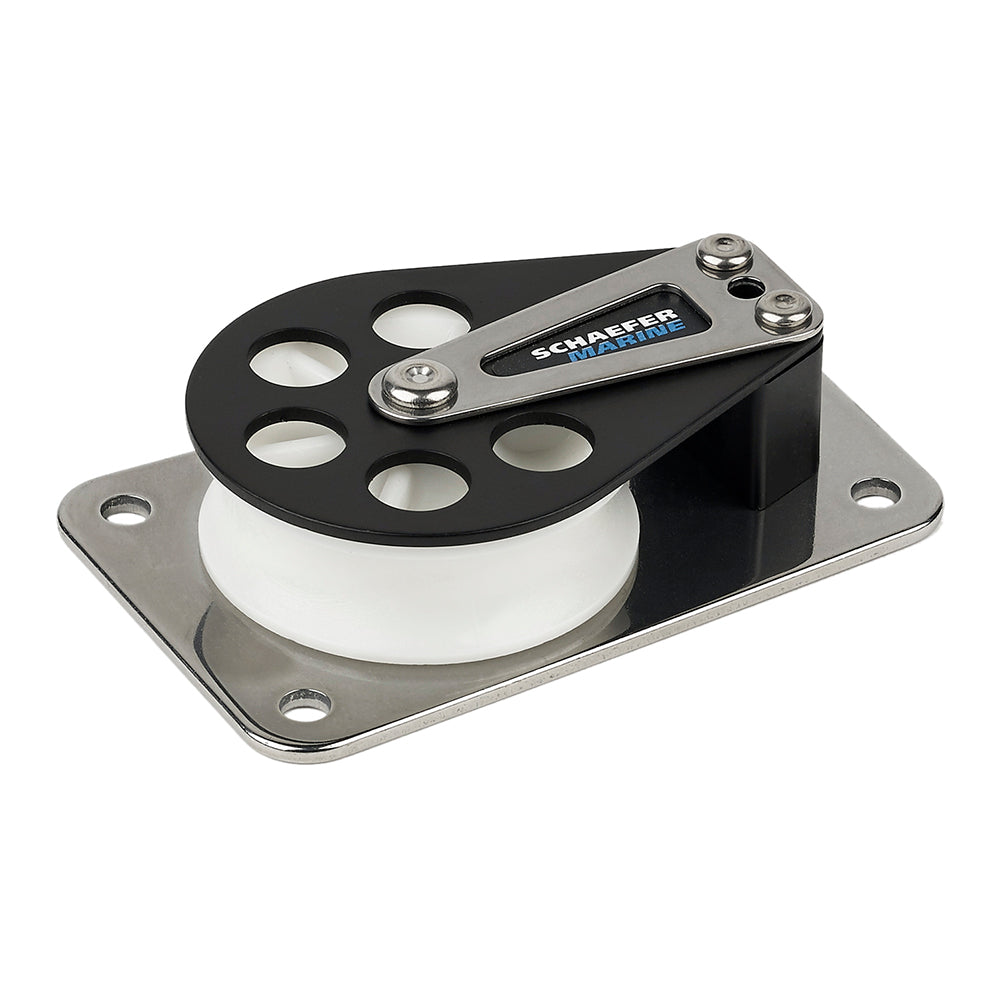

Series 7 Flat Base/Aluminum Cheek/Delrin Sheave

Delrin™ sheave ensures smooth operation and high safe working load. Stainless steel base distributes loads to a large surface area.

Specifications:

  • Sheave Dia. 2-3/8" (60 mm)
  • Max. Line 1/2" (13 mm)
  • Length 4-3/8" (111 mm)
  • Width  2-3/4" (70 mm)
  • Height 1" (25 mm)
  • Fasteners (4) 1/4" RH (6 mm)
  • C/C 3-5/8" (92 mm)
  • C/C (wide end) 2" (51mm)
  • C/C (narrow end) 1-9/16"
  • SWL 2250 lbs. (1020 kg)
  • Weight Alum. 9.6 oz. (272 g)
