Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1-1/4" T-Track [705-92]
Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1-1/4" T-Track [705-92]

Schaefer Spring Loaded/Lined Slide/Stainless Steel f/1-1/4" T-Track [705-92]

Vendor: Schaefer Marine
Barcode: 740507021305
Availability: In Stock
$299.99
$299.99
Order within the next hours minutes to ship by end of next business day. Estimated delivery for Standard shipping is between and

Sold Through Authorized Distributors

Ensuring product authenticity and quality by sourcing from trusted, authorized distributors.

Return Policy

Learn More.

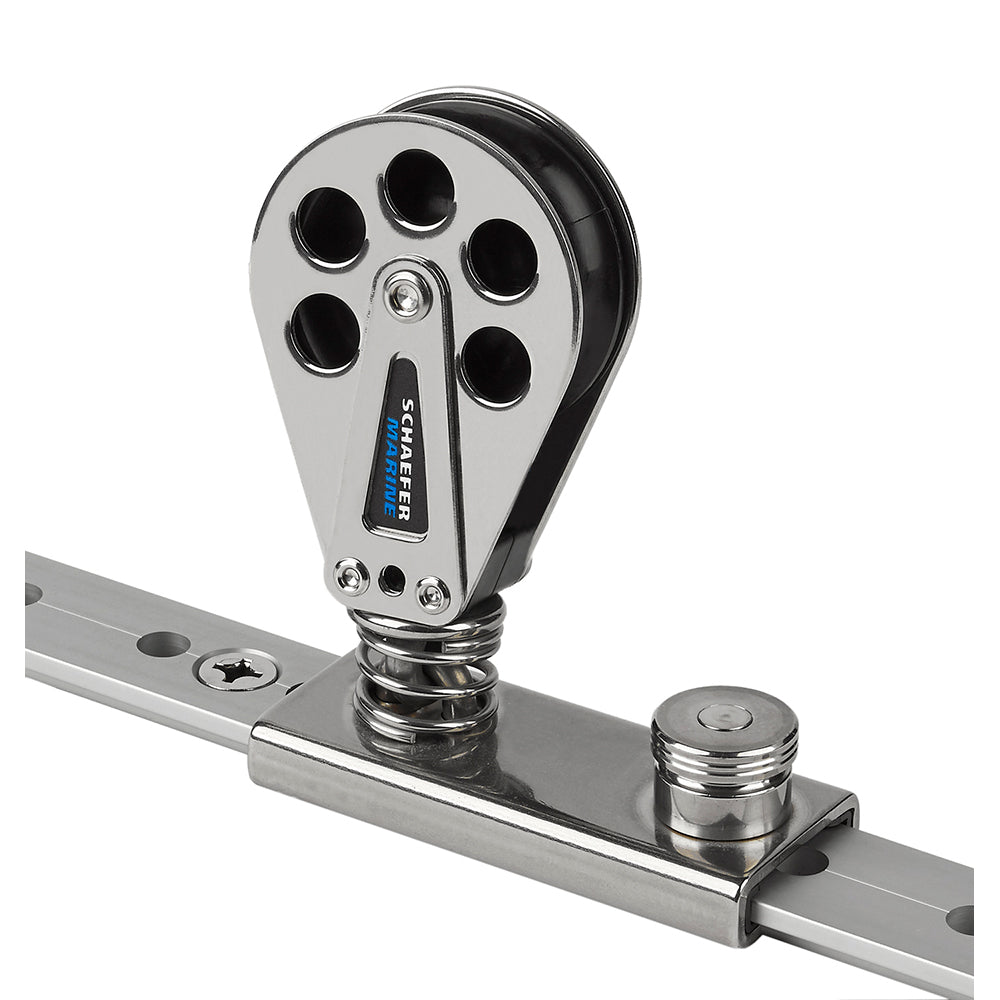

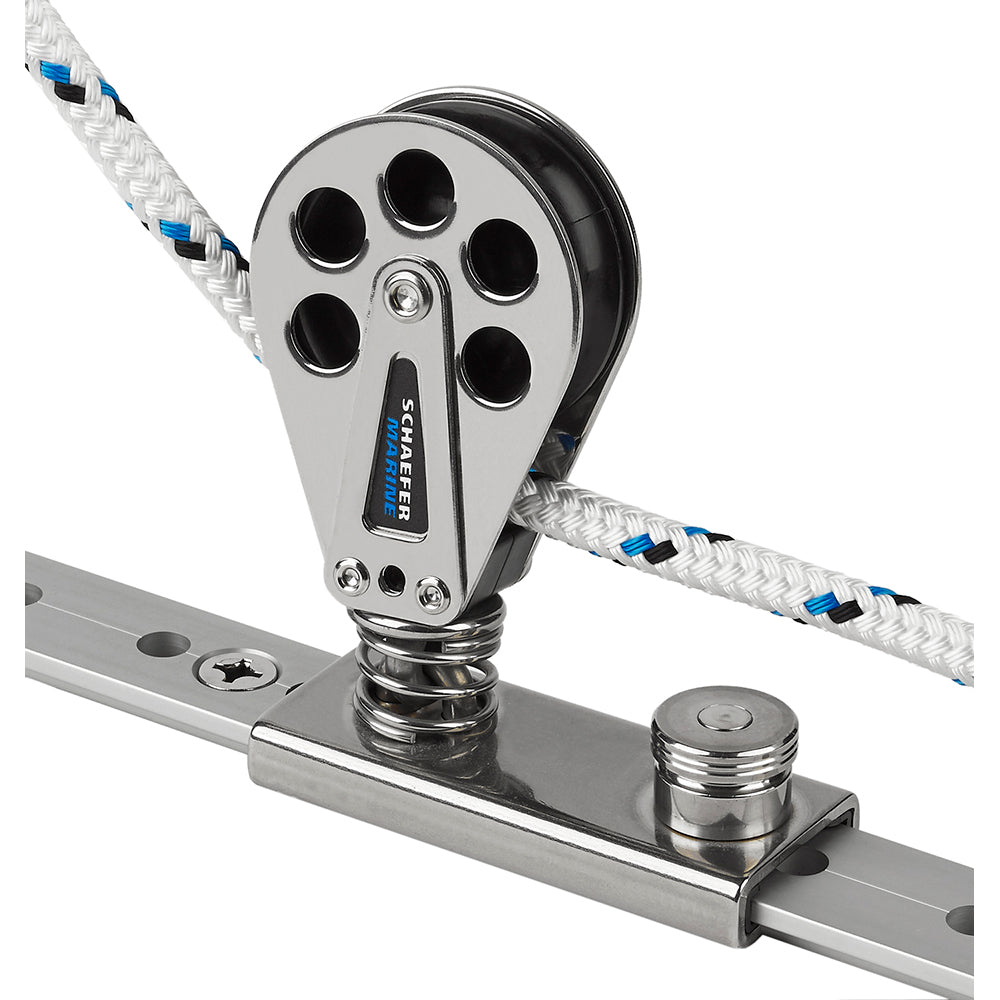

Spring Loaded/Lined Slide/Stainless Steel for 1-1/4" T-Track

Delrin™ sheave ensures smooth operation and high safe working load. Stainless Steel cheeks and stainless steel slider ensure reliability. Polyethylene liner and pin stop allow for easy adjustment.

Specifications:

  • Track Size 1-1/4" x 3/16" (32 mm x 5 mm)
  • Max. Boat Length 33' (10 m)
  • Max. Boat Weight 12000 lbs. (5455 kg)
  • Max. Sail Area 520 sq. ft. (48 m2)
  • Sheave Diameter 2-3/8" (60 mm)
  • Max Line 1/2" (12 mm)
  • Length 4" (102 mm)
  • Width 1-9/16" (39 mm)
  • Height 4-15/16" (126 mm)
  • Bearing Height 2-3/8" (67 mm)
  • SWL 2250 lbs. (1020 kg)
  • Weight 14 oz. (397 g)
